Bitbucket Server Repository Pull Request Hook Plugin

This project, including source code is discontinued. It is simply not relevant to the up to date versions of Bitbucket

• Atlassian Marketplace
• Sources

Planned features

• Multiple URLs
• Support for HTTPS
• Internationalization

Introduction

The plugin provides the following functionality:

• Notifying 3rd party services via REST interface about the changes in the project Pull Requests
• Notification on:
  • PR creation/edit
  • PR decline
  • PR merge
  • New/Edit/Delete comment in the PR
• Per-repository configuration via 'repository hooks' tab
• Accessible by the repository administrators
• The following HTTP operations are supported:
  • POST
  • GET
  • PUT
  • DELETE

Usage

Templating

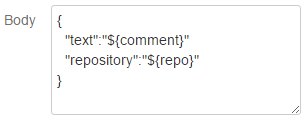

Several variables can be passed by the message URL or body. There is a special variable containing comma separated list of available variables: ${all_keys}

Authorization

There is no dedicated field for authorization. One can add authorization header into 'headers'. In such case the field will look like:

Please visit wikipedia to learn how to construct basic auth header.

For Jenkins it is recommended to use Build Token Root Plugin. It allows using anonymous request + build token (think of API key).

Example 1

• Create Jenkins job "Bitbucket Capture"
  • Add String Parameter ALL
  • Add Token BBBUILD in Build Triggers Trigger builds remotely (e.g., from scripts)
• Check if the job is working
  • Trigger job manually using your browser's private mode
  • Enter the (appropriate to your setup) URL http://localhost:8080/buildByToken/buildWithParameters?token=BBBUILD&job=Bitbucket%20Capture&ALL=Hello

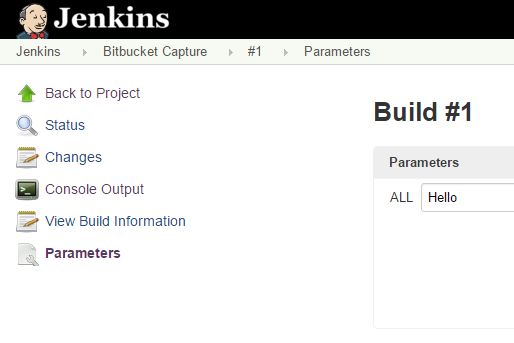

Entering URL will take you to an empty page. Back in Jenkins you should see that the job was triggered and parameter is successfully passed:

• Add more String Parameters to the Jenkins job:
  • ACTION
  • PR_ID
  • REPO
  • PROJECT

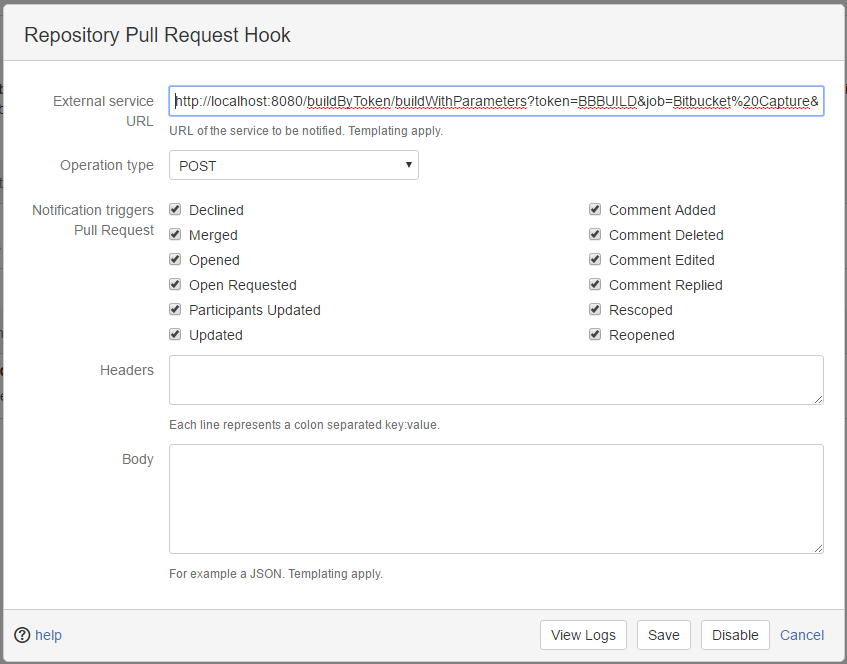

• Configure Bitbucket Server
  • Ensure that the plugin is installed.
  • Enter any repository Settings, then Hooks
  • Enable Pull Request Hook
  • Enter URL http://localhost:8080/buildByToken/buildWithParameters?token=BBBUILD&job=Bitbucket%20Capture&ALL=${all_keys}&ACTION=${action}&PR_ID=${pr_id}&REPO=${repo}&PROJECT=${project}
  • Enable all triggers
  • Save

• Test connection
  • Create pull request
  • Add a comment

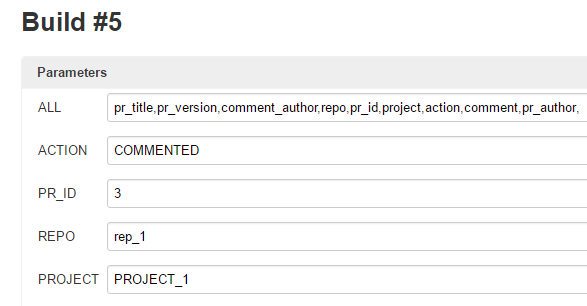

After that you should notice that a new builds were run. Inspect those builds parameters.

Extras

Jenkins job config.xml:

<project>
  <actions/>
  <description/>
  <keepDependencies>false</keepDependencies>
  <properties>
    <hudson.model.ParametersDefinitionProperty>
      <parameterDefinitions>
        <hudson.model.StringParameterDefinition>
          <name>ALL</name>
          <description/>
          <defaultValue/>
        </hudson.model.StringParameterDefinition>
      </parameterDefinitions>
    </hudson.model.ParametersDefinitionProperty>
  </properties>
  <scm class="hudson.scm.NullSCM"/>
  <canRoam>true</canRoam>
  <disabled>false</disabled>
  <blockBuildWhenDownstreamBuilding>false</blockBuildWhenDownstreamBuilding>
  <blockBuildWhenUpstreamBuilding>false</blockBuildWhenUpstreamBuilding>
  <authToken>BBBUILD</authToken>
  <triggers/>
  <concurrentBuild>false</concurrentBuild>
  <builders/>
  <publishers/>
  <buildWrappers/>
</project>

Displaying Log

There is a button in the configuration dialog that leads to a log. Communications are logged per-repository. <<:projects:bitbucket:bb_example_viewlogs.png?nolink|>>

Notes

• Connection time-out is set to 5 seconds

Test scenarios

Configuration

• Entering incorrect URL
  • https:\\123.com
  • 45434.com
  • http:\\ space .com
• Entering incorrect header data
  • without colon
  • empty lines

Core

• Enable all notification types and check them one-by one
• Set all possible variables in body and check if it is valid for all notification types
• Use basic-auth header

Weblog

• Accessing non-existing log
• Accessing existing log by admin of other project
• Accessing log with non-configured plugin for given repository
• Accessing log when non-existing URL is set in config
